DBM-2134 Cable Fault Tester/ Cable Identification System

Power cable jointing technicians are often faced with the problem of having to cut into existing live

cables in order to expand their existing networks.

The RD-2134 was designed to facilitate the positive identification of one disconnected power cable from a

bundle. It will, when used correctly positively and safely identify one specific cable. It is very simple to

operate and will give perfect results time after time.

Principles of Operation

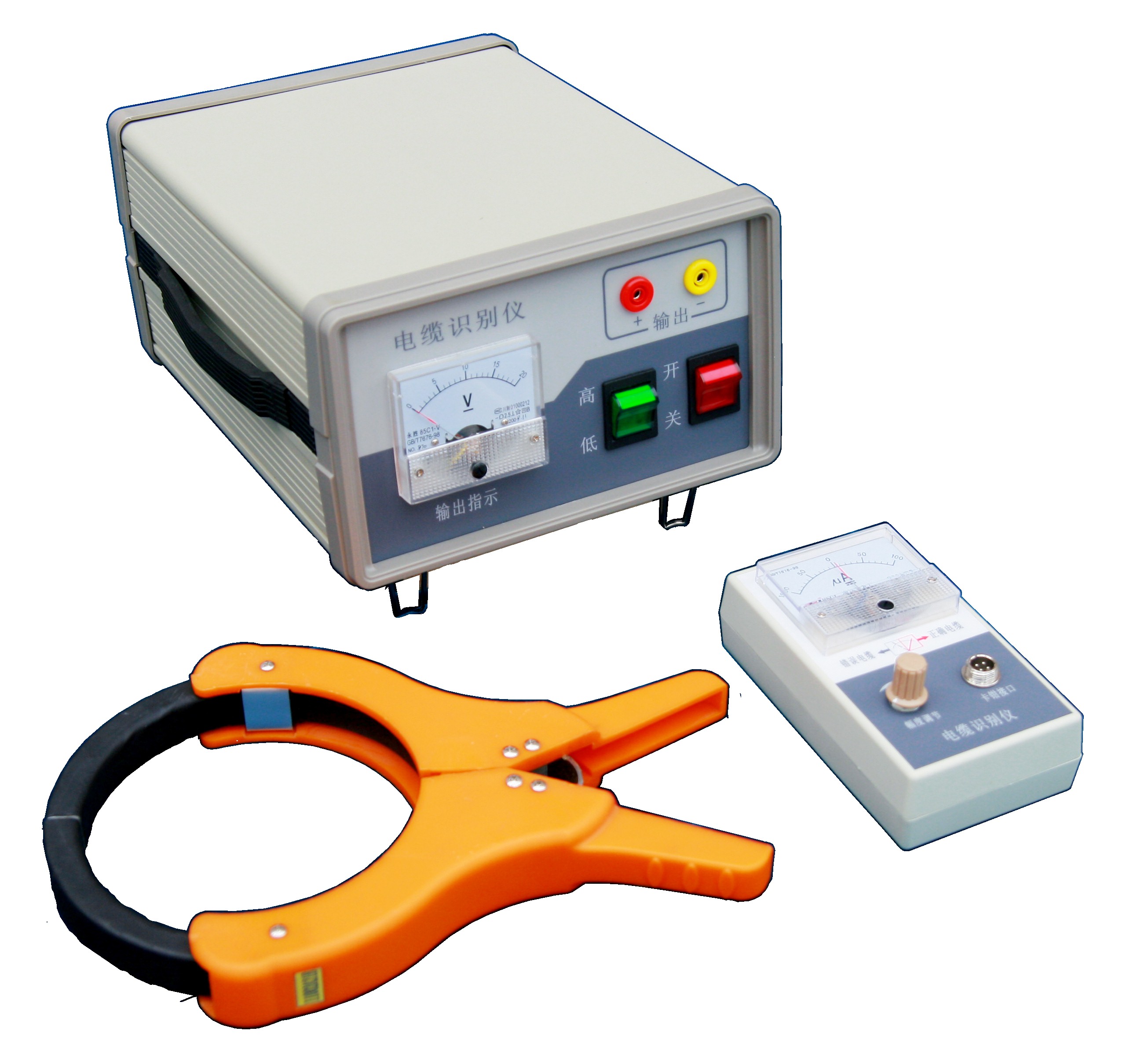

RD-2134 cable identification system consists of three parts: signal generator, receiver clamp and indication

meter.

Signal generator to produce specific pulse modulation signal, and applied to the disconnected cable,

uses the receiver clamp and indication meter to find the measured cable at the field, When the receiver

clamp detected the special signal that applied to the cable, indicator meter's pointer will

synchronization swing with the imposition signal frequency. In other cable, Detected signal will have a

lot of small and in the opposite direction, through the amplitude and direction of the meter indication,

the able under test is very easy to determine.

The application of the instrument is very simple and very low levels of skill is needed for successful

positive cable identification.
