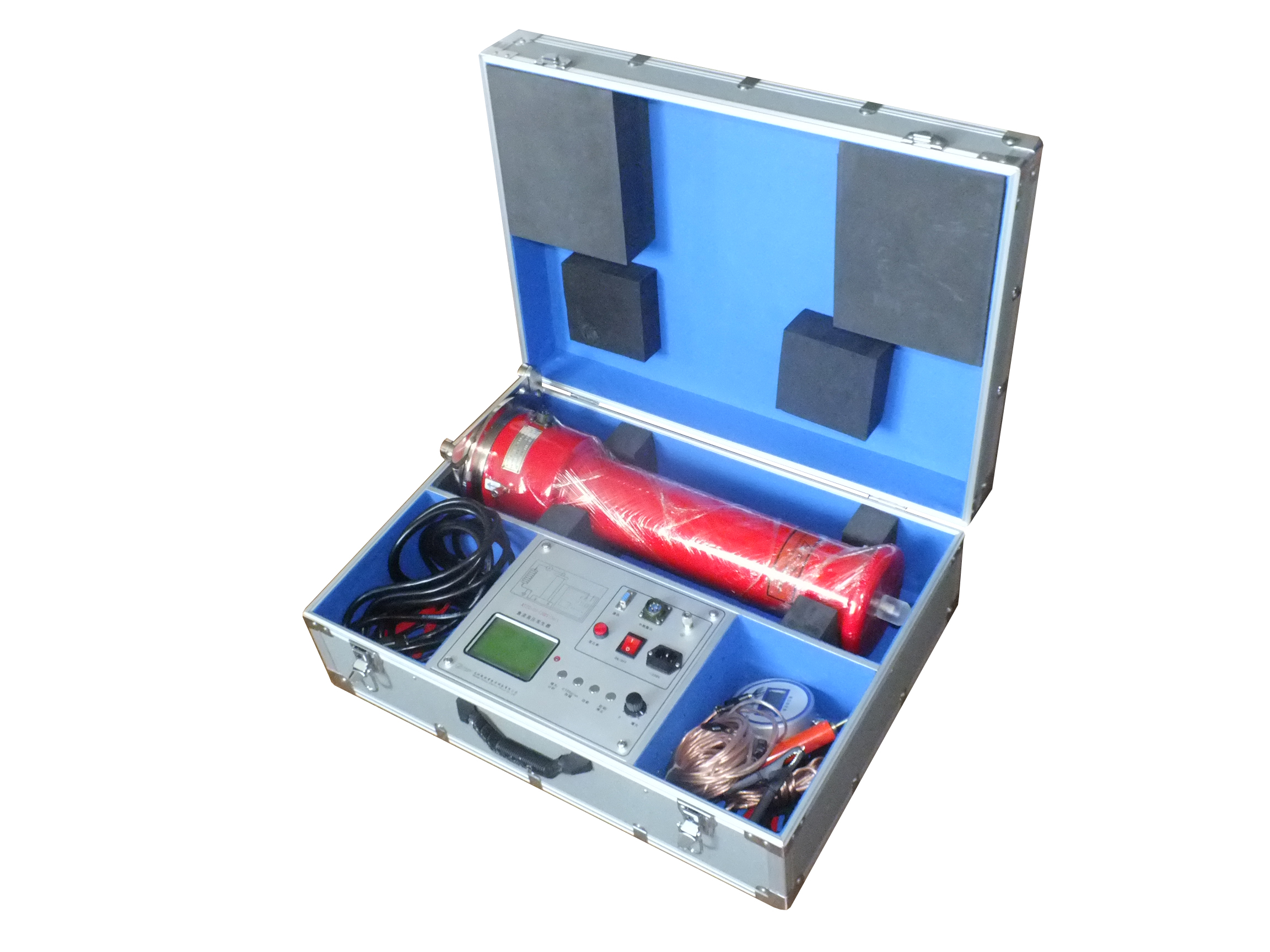

DBZG-II DC high voltage divider

DBZG-II High Voltage Electrical Equipment is used to test DC high voltage for zinc oxide arrester, magnetic blowing arrester, power cables, generators, transformers, switches and other equipments, which is suitable for electric power branch, power department of factories, scientific research units, railway, chemical industry, power plants.

Download

Get A Free Custom Proposal

Description

1. Simple operation and complete function, easy for wild work.
2. Higher voltage stability, smaller ripple coefficient.
3. More reliable and stable, can stay continuous discharge directly to earth.
4. High precision, exact measure, figure display, with good anti-interference function.
5. It has high stabilization of voltage regulation and regulates voltage smoothly.
6. Number dial switch for over-voltage set function, which can display figures of voltage clearly.
7. For Combined machine design of 40KV equipment, the high voltage can be output directly with earth cable. Other type of equipments can be supplied according to customer's specific requirements.

Rated voltage		40kV/60kV/120kV/200kV/300kV/500kV
Rated current		2mA/3m A/4mA/5mA
Power supply		AC220V± 10%, 50Hz
Ripple coefficient		≤ 0.5%
Voltage meter precision		± (1.0 %of the reading± 2digit)
Current meter precision		± (1.0 %of the reading± 2digit)
Voltage stabilization		stochastic wave, ≤ 1% when power wave± 10%
Environmental		-10--40degree
Relative humidity		≤ 85% (no condensate)
