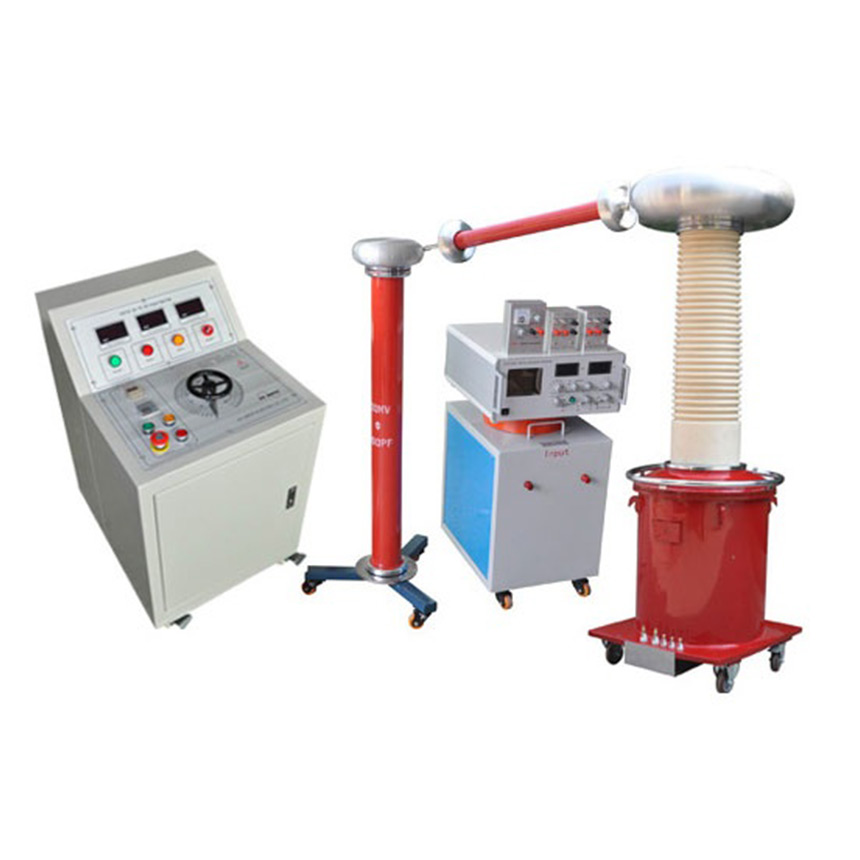

DBYT-10-100 Digital Partial Discharge Test System 10kVA-100kV

It is mainly used for testing frequency voltage insulation level of various insulation materials, insulation structure and electrical products, also as partial discharge frequency testing power supply for testing object such as transformer, mutual inductor and lightning arresters. It widely used in electrical manufacturing, power operation departments, research institutes and universities.

Download

Get A Free Custom Proposal

Description

Hipot Test Control Unit DBYD-10/100				1 piece
PD-free Gas type transformer YDQW-10/100				1 piece
Coupling capacitor TAWF-800pF/100kV				1 piece
Protective resistor GR100kV				1 piece
Isolation filter LBQ-10kVA				1 piece
Partial discharge detector GDJF-2008				1 piece
Other accessories

Hipot control Unit (DBYD table) and PD-free testing transformer are controlling and voltage boosting for test object which boosted to the rated voltage.

Partial discharge detector(DBJF-2008) is detecting and displaying partial discharge capacity.

Isolation filter(LBQ-10kVA) is device of anti-interference caused by power supply.

Coupling Capacitor is transmitting partial discharge signal to partial discharge detector.
