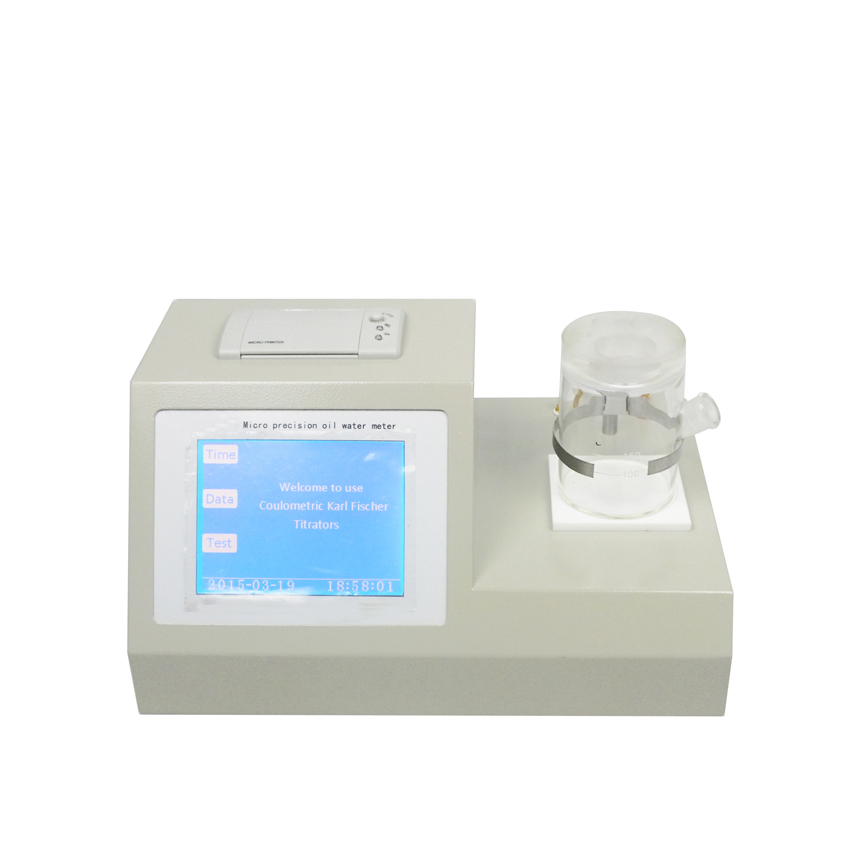

DBKF-106 Moisture Content Determinant

Product Introduction

DBKF-106 Moisture Content Determinant (Micro Precison Oil Water Meter) is used for Coulometric water determination according to Karl Fischer. The instrument is designed for usage as a titrator in analytical laboratories. Its main application field is volumetric titration.

The present instrument is suitable for processing chemicals and flammable samples. The usage of this titrators therefore requires that the user has basic knowledge and experience in the handling of toxic and caustic substances. Knowledge with respect to the application of the fire prevention measures prescribed for laboratories is also mandatory.

Technical specifications

1.      Modes：Coulometric KF titration with automatic blank deduction

2.      Endpoint indication Voltametric, AC indication

3.      Iodine production Pulse with variable current strength and length

4.      Current at the generator electrode: 100, 200, 400 mA

5.      Titration speed max.：2.4 mg H2O/min

6.      Determination range：10 ug to 100 mg H2O

7.      Resolution：0.1 ug H2O

8.      Reproducibility Sample:   Reagent manufacturer's standard.

9.      With 10 ug...1000 ug H2O: ± 2 ug

10.   With >1000 ug H2O: 0.2% or better

11.   Drift compensation automatic

12.   Display Graphical LCD, 240 x 128 dots, LED back-lit

13.   Printer：Built-in thermal printer, Paper width 57 mm

14.   Memory Data storage 500 results

15.   Stirrer control coordinated with the titration process

16.   RS232 interface computer connection

Ambient temperature

Working temperature:5- 40 °C

Storage: – 20-60 °C

Power source

Voltage 100-240 V ± 10 %

Frequency 50/60 Hz

Power consumption max. 30 W
